Hydrogen Backup Power SystemZero-Emission Standby Power with Fuel Cell Technology

Product Overview

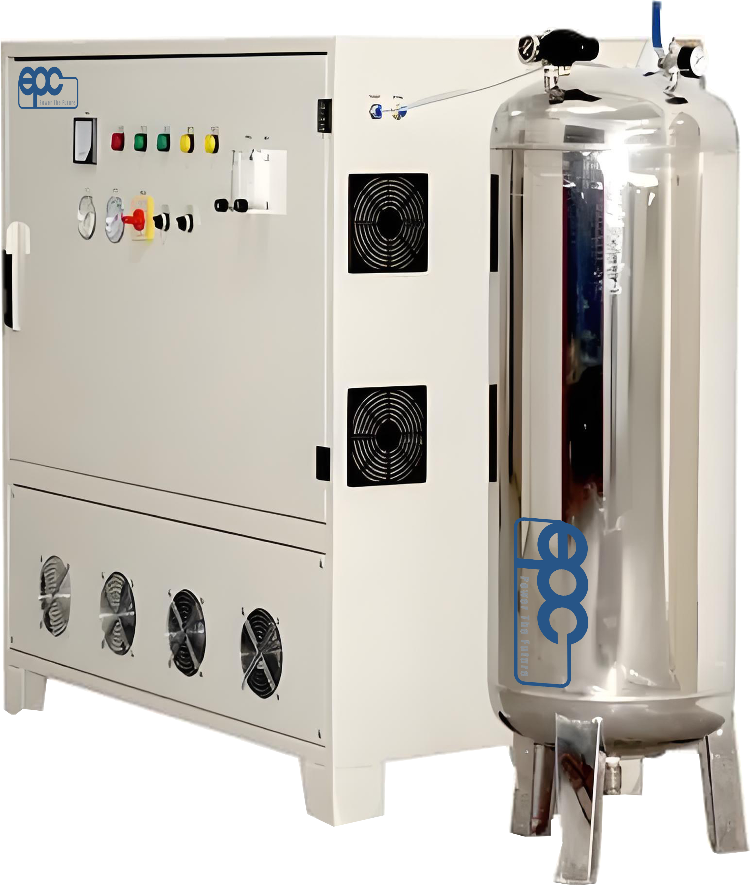

The Hydrogen Backup Power System is a clean, quiet, and reliable alternative to diesel generators. Utilizing PEM fuel cell technology, it generates electricity on demand using high-purity hydrogen, ideal for critical infrastructure where uninterrupted power is essential.

System ConfigurationFuel Cell Stack:
PEM-based (modular 1–50 kW options)
Hydrogen Supply: High-pressure or solid-state tank (20–35 MPa)
Power Conditioning: DC/AC inverter, battery hybrid optional
Control System: PLC with touchscreen & remote diagnostics

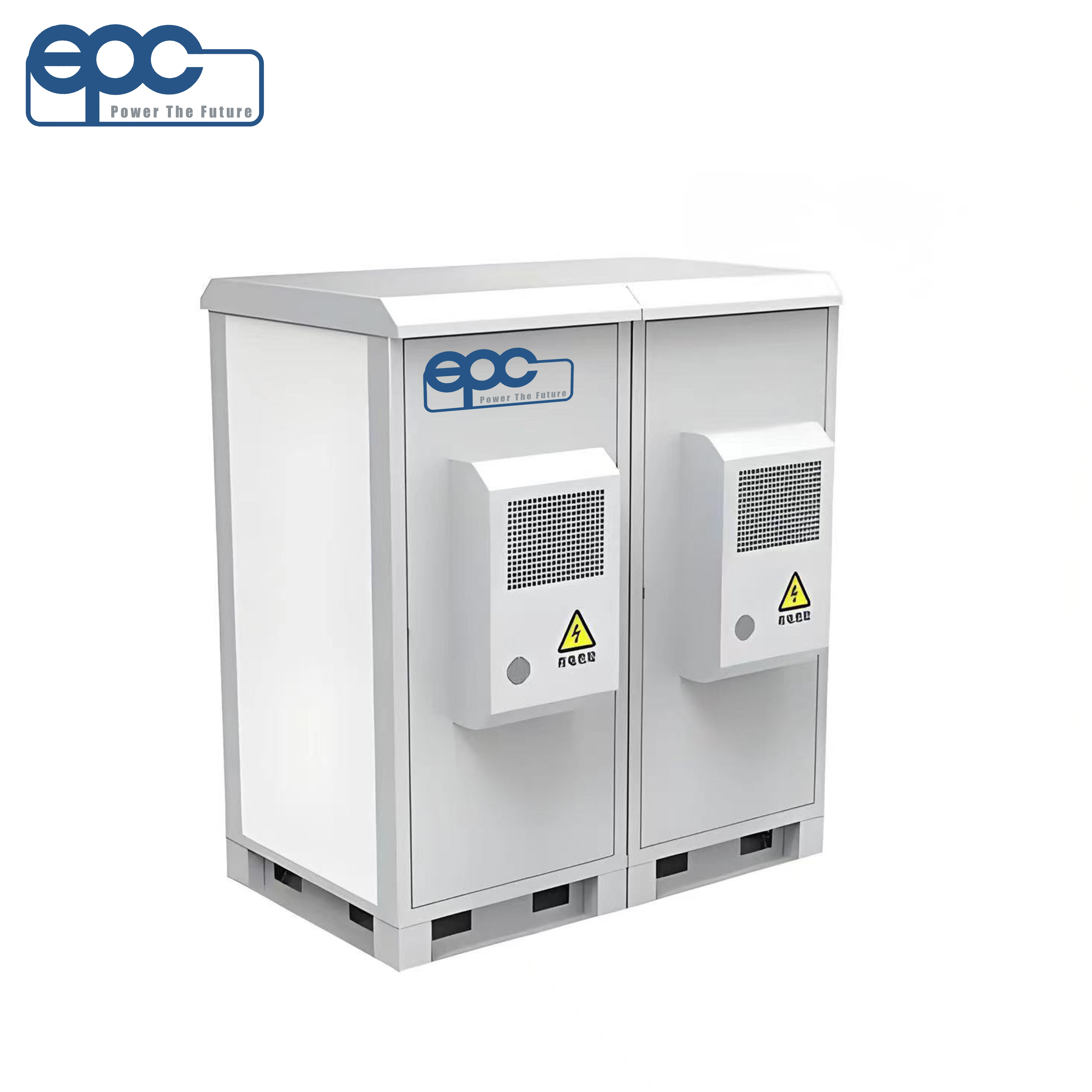

Cabinet: Outdoor/indoor enclosure (IP54/IP65)
未标题-3
Technical Specifications
ParameterUnitValue
Rated Power Output                  kW     5 / 30 / 100 (configurable)
Output Voltage                            V      48 / 220 / 380 (DC or AC)
Start-up Time                              sec    < 60
Hydrogen Consumption Rate    Nm³/h    ~0.45 (at 5 kW)
Hydrogen Purity Required          %      ≥99.999
Operating Pressure (H₂)              MPa  1.5–3.0
System Efficiency                         %        ≥45
Noise Level                                    dB        ≤55
Operating Temp Range                 °C        -10 to +45
Monitoring Interface                      –         PLC / Modbus / Remote
Protection Level                             –          IP54 / IP65
1(1)_20250514_17472118240337850
13_20250514_17472117495982770
Data centers and edge servers
Hospitals and medical centers
Emergency & public infrastructure
Remote stations (weather, military, communication)
ApplicationsTelecom base stations:
Key Benefits
Zero-emission and low-noise operation
Reliable backup during outages
Rapid start-up and seamless switchover
Scalable from 1–100 kW
Lower maintenance vs diesel gensets
Ideal for hybrid battery integration
Optional Features
Battery buffer for power bridging

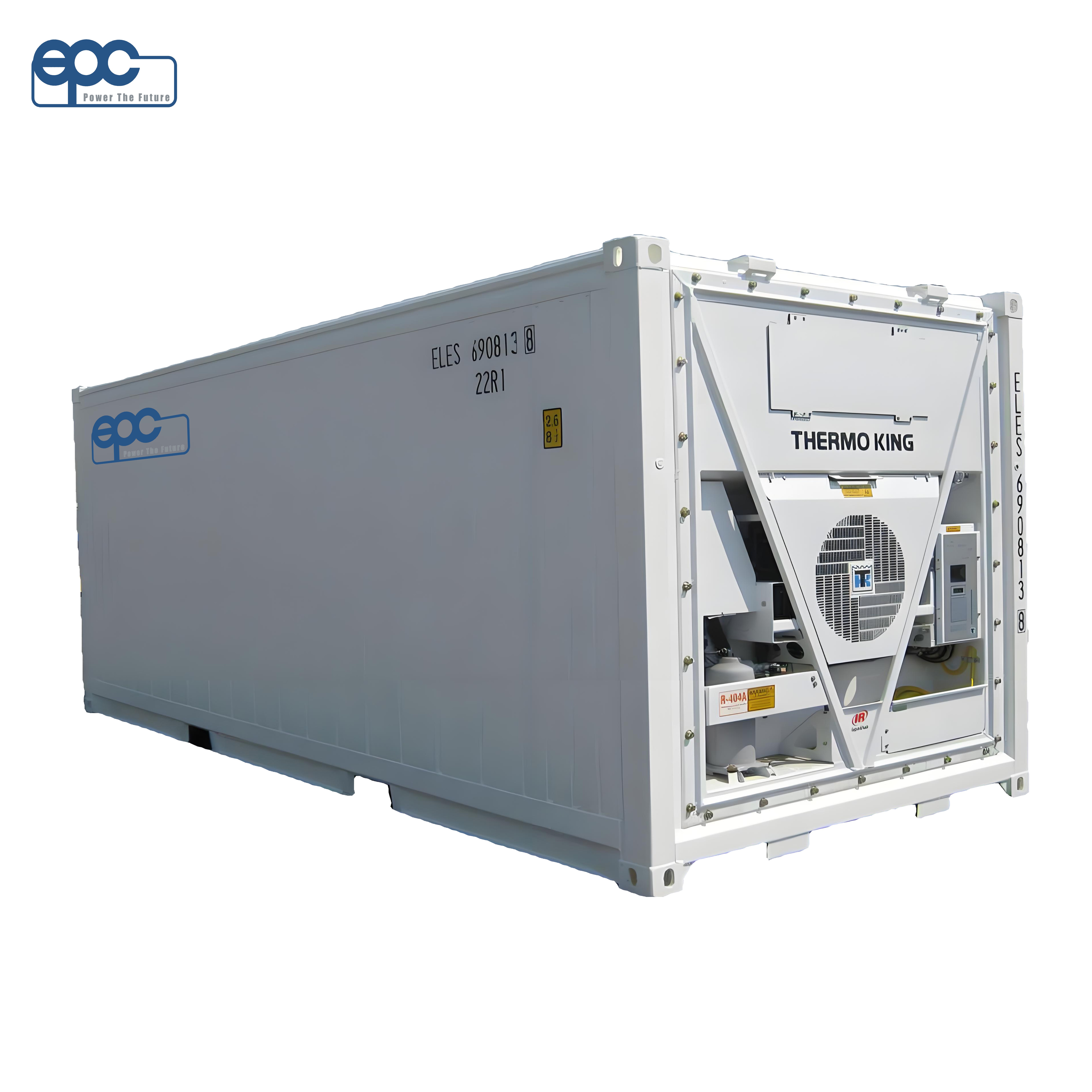

Outdoor containerized enclosure
Hydrogen trailer interface
Real-time remote management with AI diagnostics
