PEM Electrolyzers
5
Hydrogen Production Rate    0-1Nm³/h (customizable)
Hydrogen Purity                     ≥99.999%
System Efficiency (HHV)         ≥65%
Power Consumption               ≤4.8 kWh/Nm³
Operating Pressure                 1.5 – 3.0 MPa
Cooling Method                      External water-cooled
Voltage Range                         110V/220V/380V/Custom
Ambient Temperature Range  5–40°C

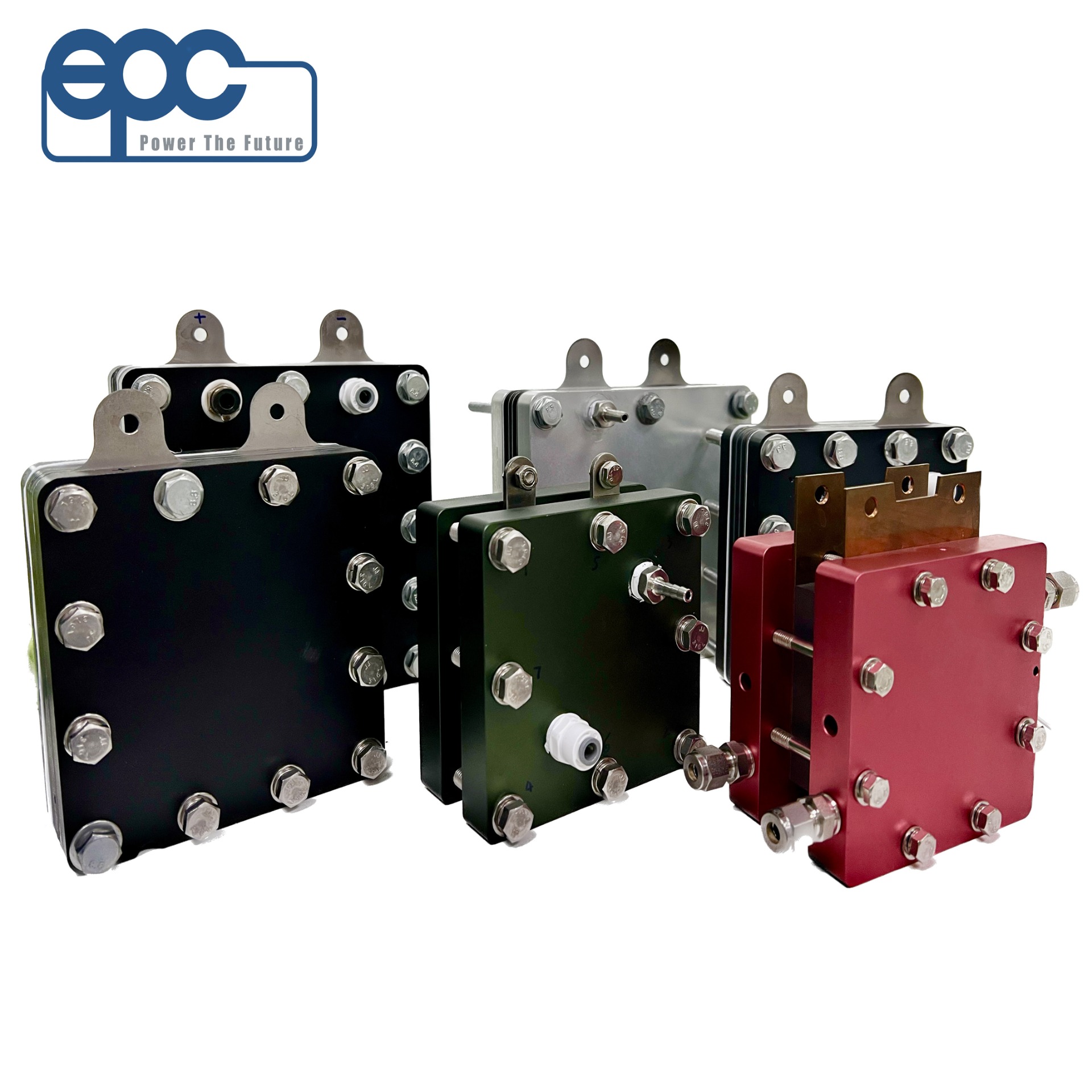

Lab-scale PEM Electrolyzer (<1 Nm³/h)
Compact electrolyzer unit for laboratory use, educational settings, or micro hydrogen applications. Ideal for research, testing, or demonstration purposes. Integrated with safety sensors, digital monitoring, and plug-and-play installation.
1_20250514_17471933152712810
Small-Scale PEM Electrolyzer (1–10 Nm³/h)
Designed for distributed hydrogen supply, off-grid systems, and mobile refueling. Features modular stack design, reliable operation, and flexible integration with energy storage or fuel cell applications.
Hydrogen Production Rate    1-10Nm³/h (customizable)
Hydrogen Purity                     ≥99.999%
System Efficiency (HHV)        ≥65%
Power Consumption               ≤4.8 kWh/Nm³
Operating Pressure                1.5 – 3.0 MPa
Cooling Method                      External water-cooled
Voltage Range                         110V/220V/380V/Custom
Ambient Temperature Range 5–40°C

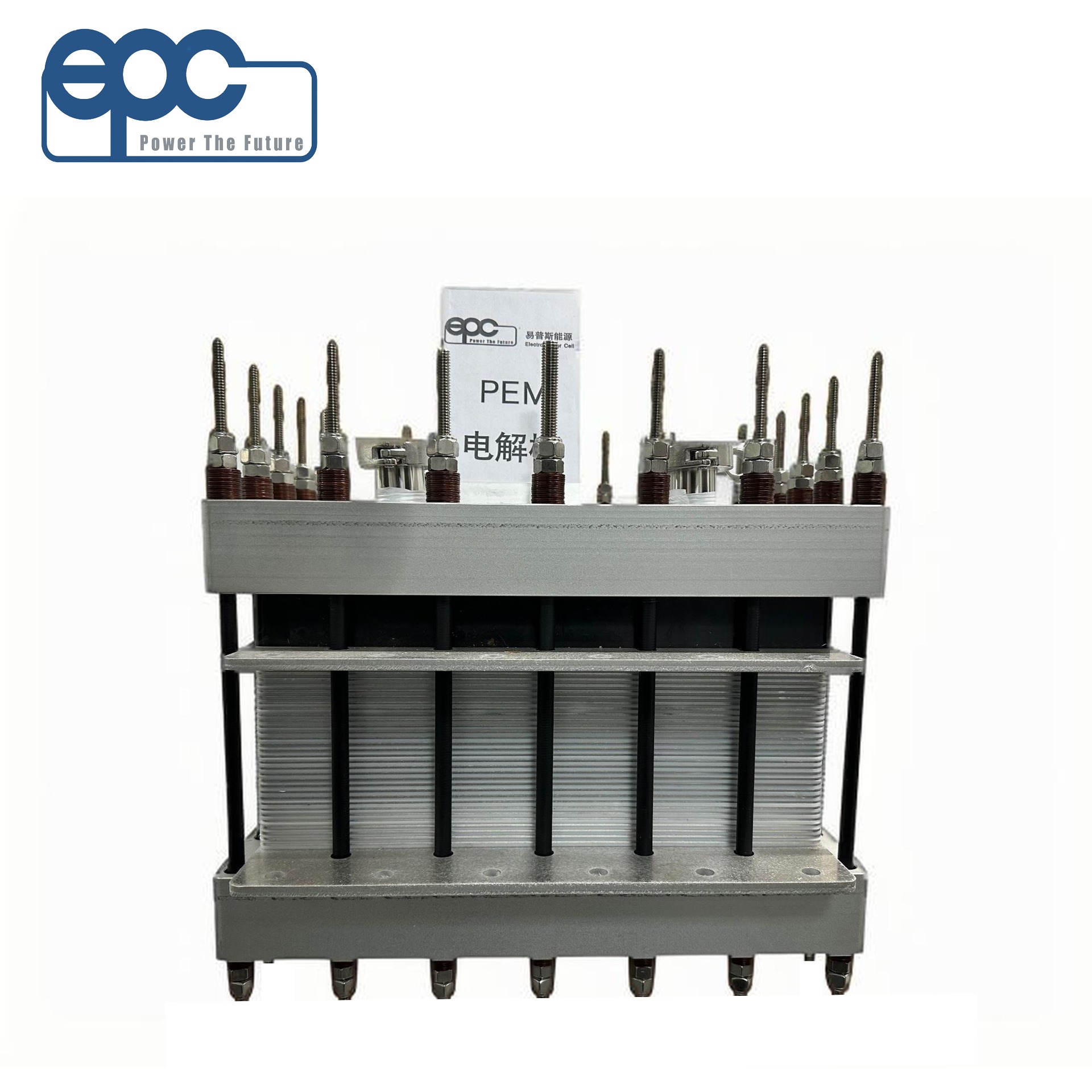

Mid-Scale PEM Electrolyzer (10–50 Nm³/h)
Ideal for industrial hydrogen supply, hydrogen refueling stations, and large distributed systems. Built for stable long-duration operation with smart control and industrial-grade reliability.
Hydrogen Production Rate    10-50Nm³/h (customizable)
Hydrogen Purity                     ≥99.999%
System Efficiency (HHV)        ≥65%
Power Consumption              ≤4.8 kWh/Nm³
Operating Pressure                1.5 – 3.0 MPa
Cooling Method                     External water-cooled
Voltage Range                        380V/Custom
Ambient Temperature Range 5–40°C
3

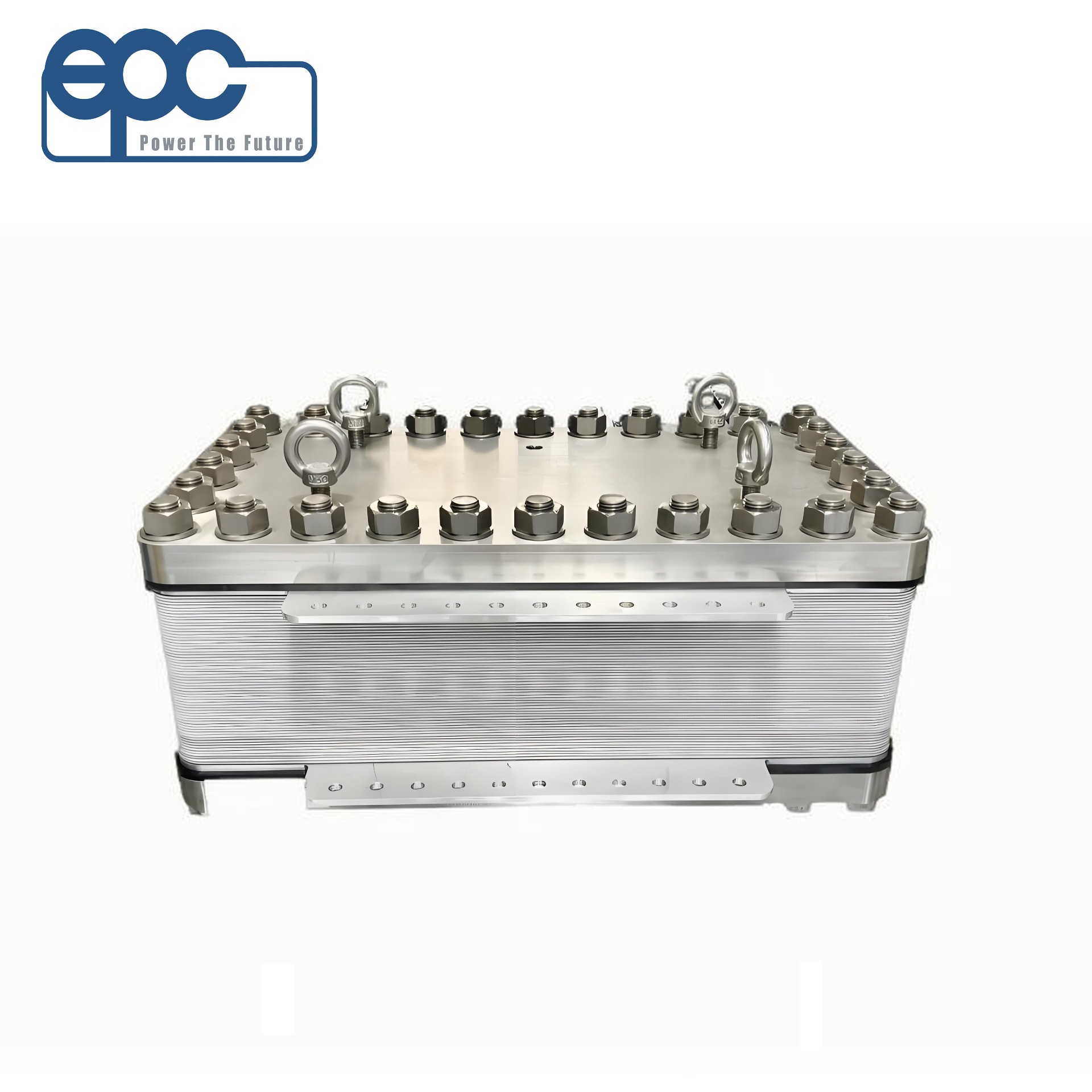

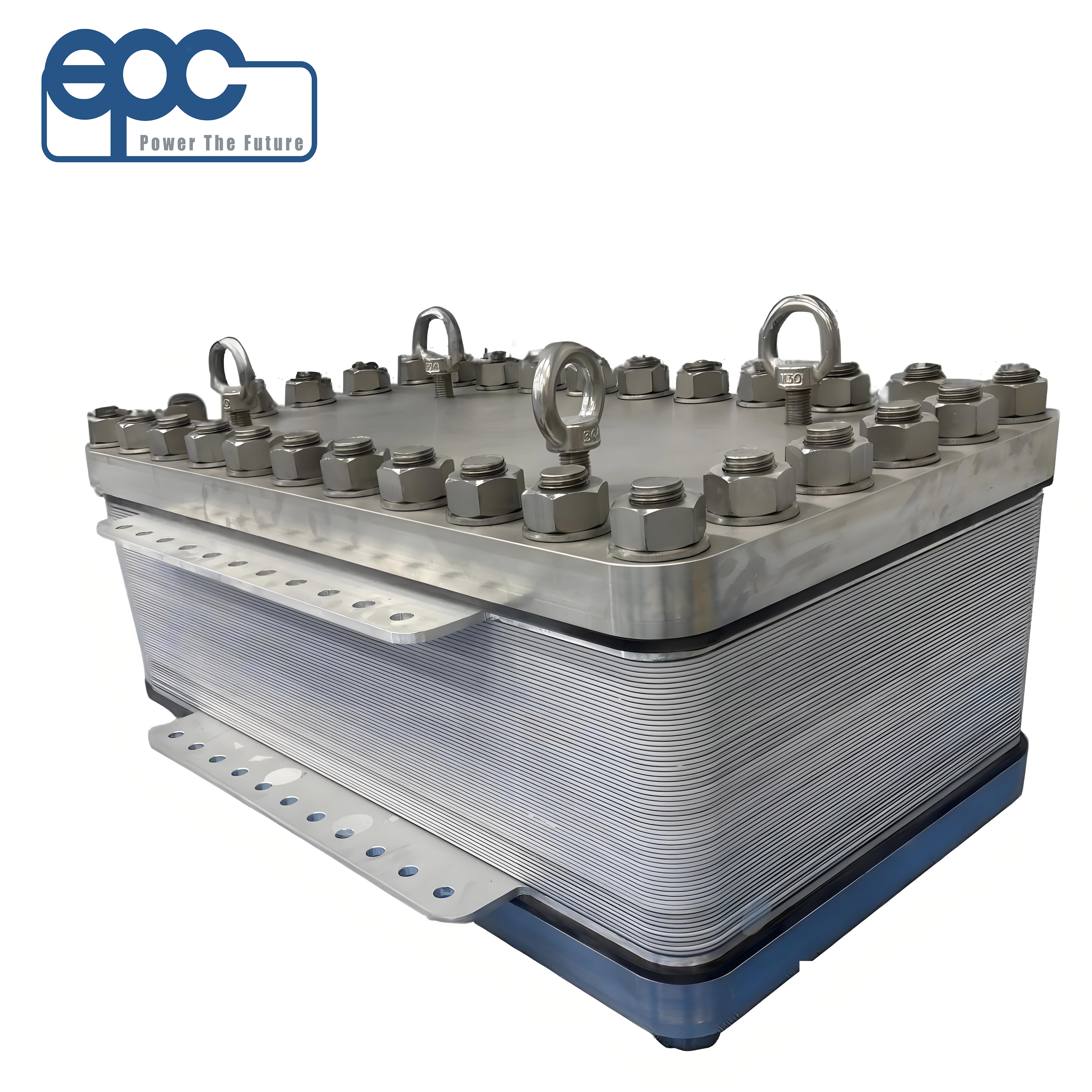

Large-Scale PEM Electrolyzer (50–200 Nm³/h)Built for utility-scale hydrogen production, chemical synthesis, and export-oriented green hydrogen projects. Fully integrated with power-to-gas systems and designed for robust, continuous operation with full digital diagnostics.
Hydrogen Production Rate 10-50Nm³/h (customizable)
Hydrogen Purity ≥99.999%
System Efficiency (HHV) ≥65%
Power Consumption ≤4.8 kWh/Nm³
Operating Pressure 1.5 – 3.0 MPa
Cooling Method External water-cooled
Voltage Range 380V/Custom
Ambient Temperature Range 5–40°C
2_20250514_17471906255545650
主1_20250514_17472021255054590

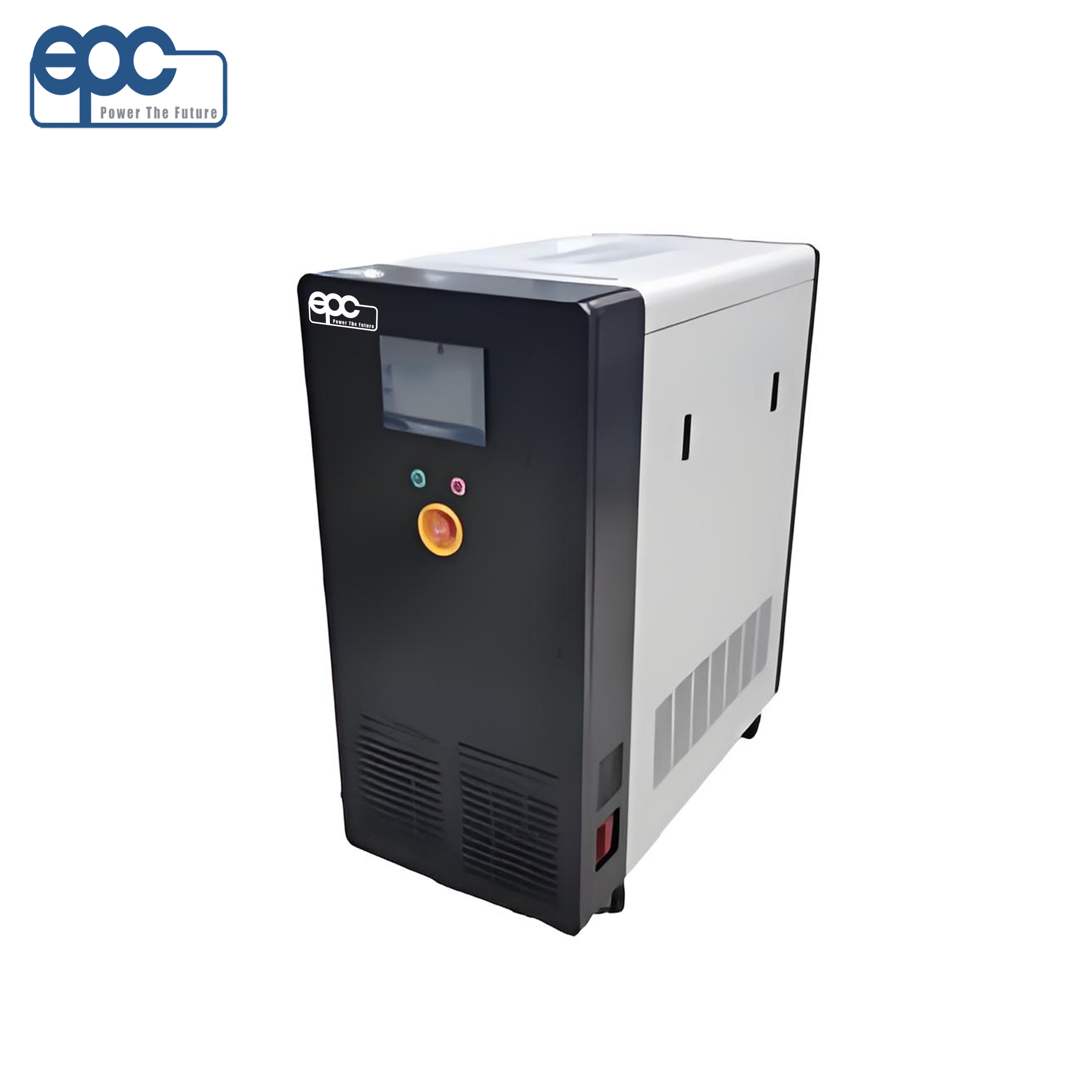

Lab-scale System (<1 Nm³/h)
📦 System Components:
     Single small PEM stack
     Low-voltage DC power supply
     Control interface (touchscreen or PC-connected)
     Small purified water tank
     Passive or fan-based cooling
     Optional data acquisition module
⚙️ Key Features:
     Plug-and-play operation with 220V power
     Compact, desktop-friendly structure
     Ideal for R&D, education, sensor testing, or UAV hydrogen supply
     Lightweight and mobile (<50kg)

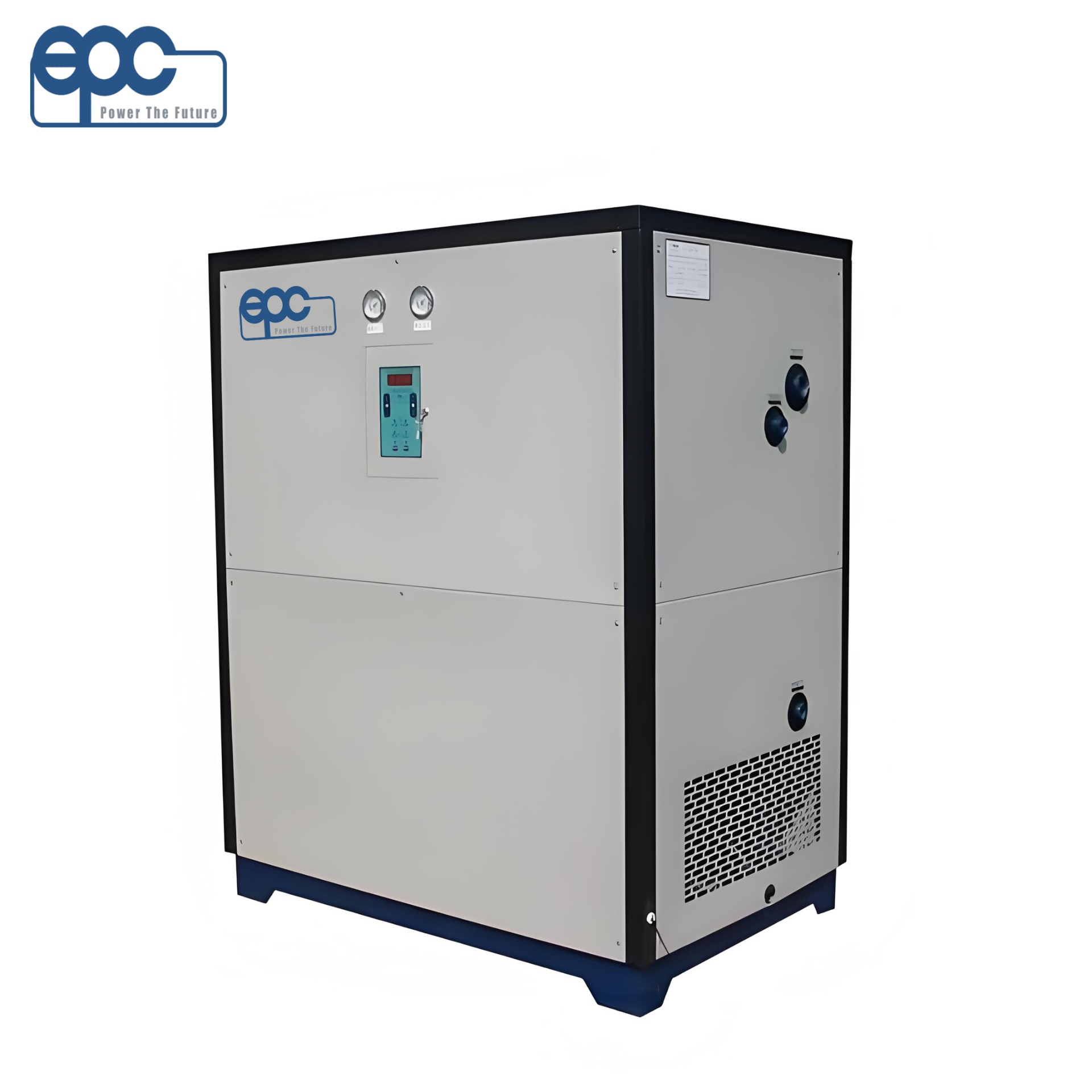

Small-Scale System (1–10 Nm³/h)
📦 System Components:
      1–2 PEM stacks (parallel configuration)
       Rectifier power cabinet (12–50kW)
       PLC control system with touchscreen
       Closed-loop water circulation system
       Integrated water treatment unit
       Cooling module (air-cooled or water-cooled)
       Optional: dryer, purifier, safety vent
⚙️ Key Features:
       Modular, skid-mounted or cabinet-integrated
       High-purity output (≥99.999%)
       Suitable for off-grid hydrogen, mobile refueling, microgrids
      Remote control and data interface (Modbus/Ethernet)
主1_20250514_17472025980964210
1_20250514_17472026390777470
Industrial System (10–50 Nm³/h)
📦 System Components:
      Multi-stack electrolyzer unit
      Industrial-grade rectifier (50–250kW)
      Intelligent cooling system with variable-speed pump
      Two-stage water treatment (RO + EDI)
      Hydrogen drying & purification unit
      Pressure regulation system
      Safety sensors, drainage unit
      Central PLC controller with remote access
⚙️ Key Features:
       24/7 continuous operation design
       Field-maintainable stacks with fast service ports
       Scalable and configurable for industrial demands
       Compatible with both on-grid and off-grid systems

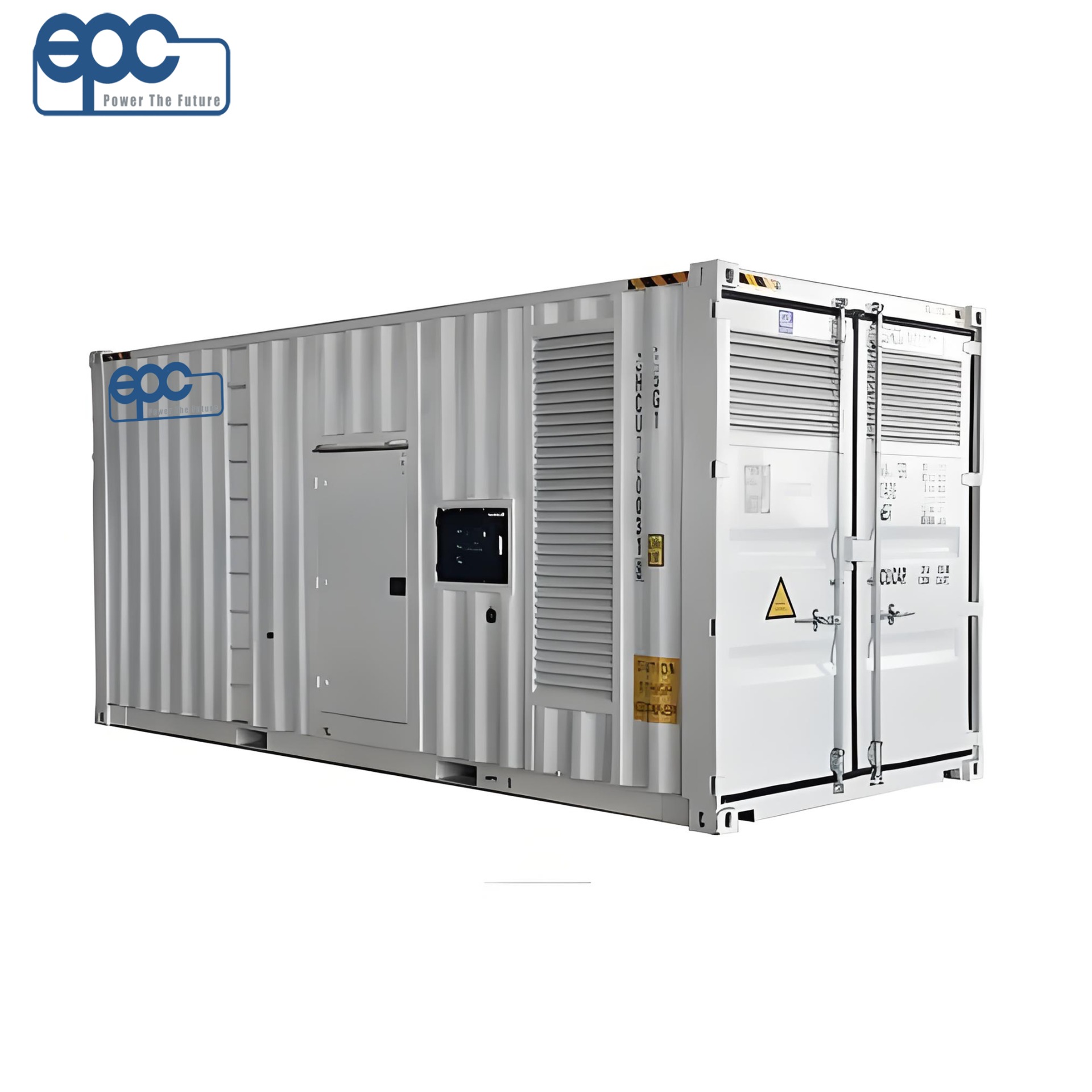

MW-Class System (50–200 Nm³/h)
📦 System Components:
      Multi-stack PEM platform (500kW–2MW+)
      Smart rectifier & power synchronization module
      Closed-loop cooling & heat exchanger unit
      Centralized control center (SCADA/EMS-compatible)
      Hydrogen purification, compression & storage system
      Containerized or cabinet-based packaging
      Optional load prediction & power scheduling module
⚙️ Key Features:
      Designed for large-scale green hydrogen production
      Supports dynamic power input from PV/wind
       Meets ISO 22734, CE, and ATEX standards
       Turnkey delivery with EPC/custom integration available
主1_20250514_17472028596811710
