氢能系统核心材料与部件

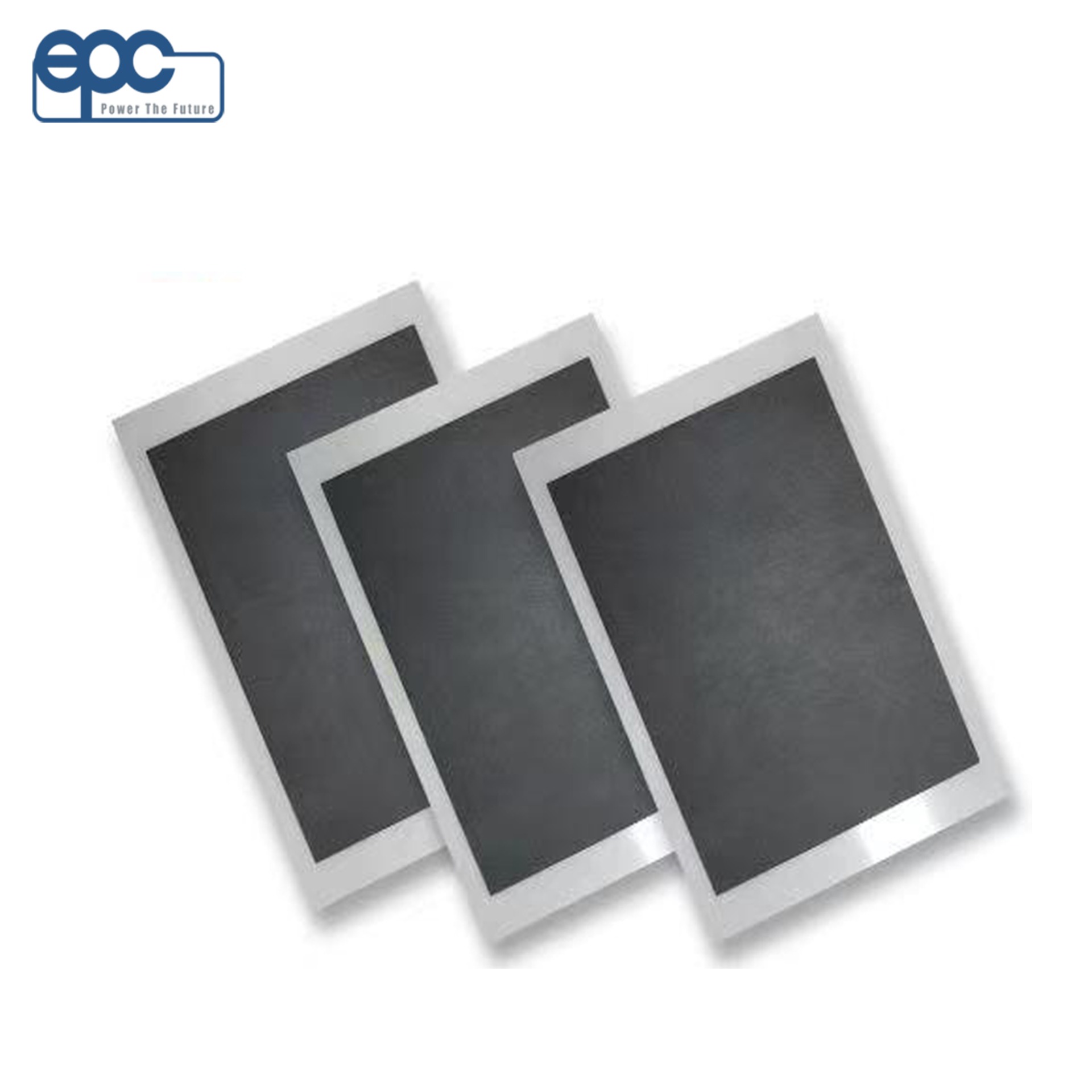

膜电极组件 MEAs
适用于 PEM 和 AEM 系统 Available for PEM and AEM applications
有效面积可定制（如 36–200 cm²） Customizable active area (e.g., 36–200 cm²)
催化剂负载可调 Catalyst loading tailored to application
高离子电导率、长寿命 High ionic conductivity and durability
提供科研与批量商用版本 Supplied for both R&D and commercial stack
优势 Highlights
优化的膜-催化层界面，提供优异的制氢效率与电堆输出性能Optimized membrane-catalyst interface for superior hydrogen production and power performance
1_20250514_17472061829462540
1(1)_20250514_17472063472346230
催化剂 Catalysts
PEM 应用使用铂族贵金属 Platinum-based for PEM
AEM/碱性应用使用 Ni/Fe 基材料 Nickel/iron-based for AEM/alkaline
提供粉末型或浆料型 Supplied in powder or ink formulations
高比表面积、电化学稳定性强 High surface area and electrochemical stability
支持无贵金属催化剂研发 Precious-metal-free options available
优势 Highlights
支持下一代低成本绿色制氢催化技术Supports low-PGM and noble-metal-free hydrogen technologies
阴离子交换膜（AEM）Anion Exchange Membranes
氨基功能聚合物结构 Quaternary ammonium-functionalized polymers
优异的碱性化学稳定性 High chemical stability in alkaline environments
厚度 <100 μm，支持加强层结构 Thin-film (<100 μm), reinforced options available
卷材或片材供货 Supplied in roll or sheet format
完全兼容易普斯 AEM 电解槽系统 Fully compatible with EPC AEM stacks and MEAs
优势 Highlights
降低贵金属使用，提升氢氧根传导能力，是碱性制氢的核心材料之一Enables low-cost, efficient OH⁻ conduction in AEM-based green hydrogen production
121r
3_20250514_17472072167977010

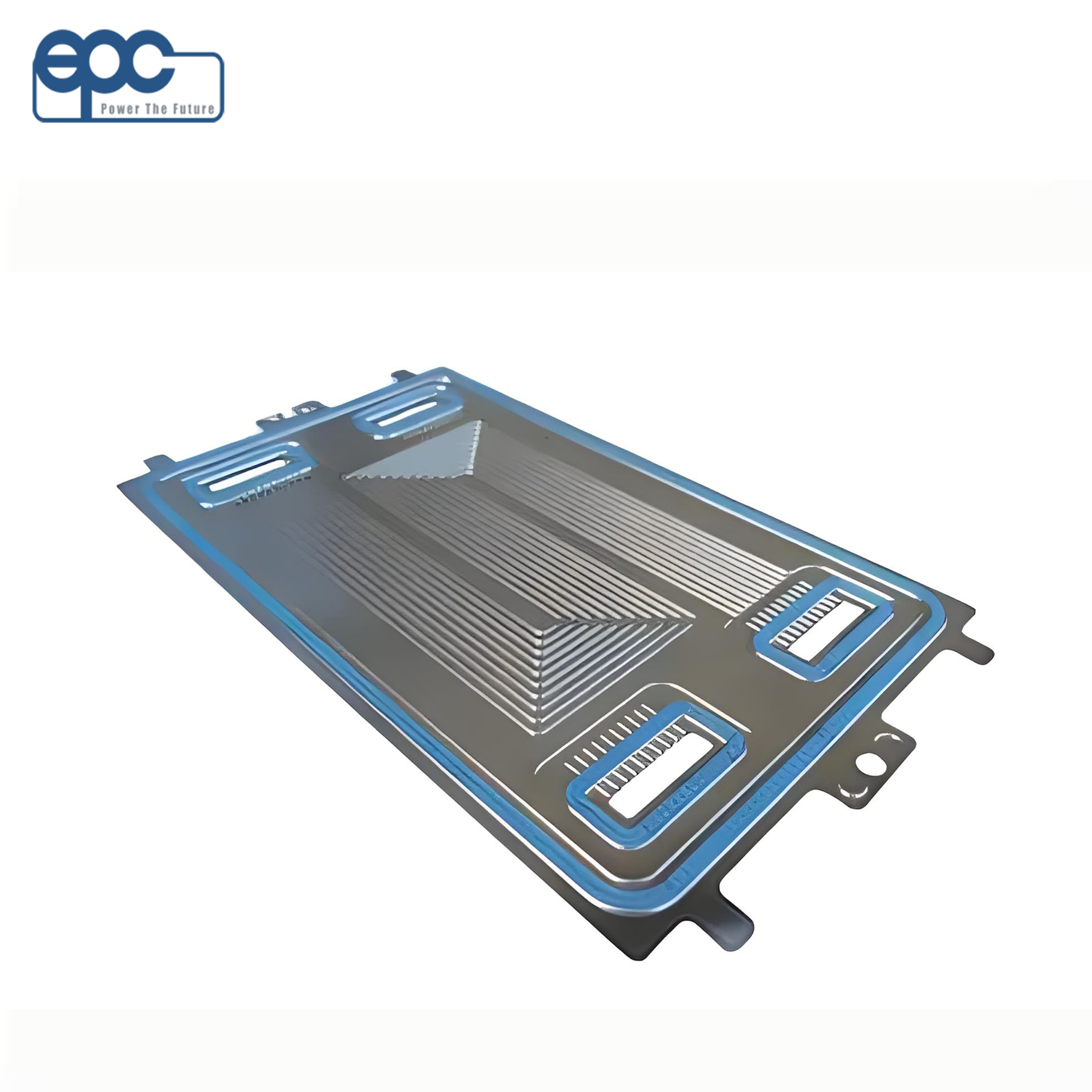

双极板 Bipolar Plates
石墨复合 / 涂层金属 / 钛材料 Graphite composite / metal-coated / titanium
定制流道设计 Custom flow field patterns available
耐腐蚀性好，导电性能优 High corrosion resistance and electrical conductivity
厚度范围 0.2–2.0 mm Available in various thicknesses
适用于电解堆与燃料电池堆 Applicable to both electrolyzer and fuel cell stacks
密封垫片与辅助部件 Gaskets & Accessories
高精度激光切割 Precision laser-cut elastomer/PTFE
耐高温耐化学腐蚀 High chemical and thermal resistance
可按客户尺寸定制 Custom shapes and sizes for stack compatibility
多孔传质层 PTL (Porous Transport Layer)
扩散层（碳纸/碳布）Diffusion media (carbon paper/cloth)电
极夹板、电流收集器 Endplates, current collectors
其他可选材料 Other Available Materials:
